RFI UHF ON-GLASS ANTENNA (380-474MHz), COUPLING BOX, 5M CABLE, NOT TERMINATED

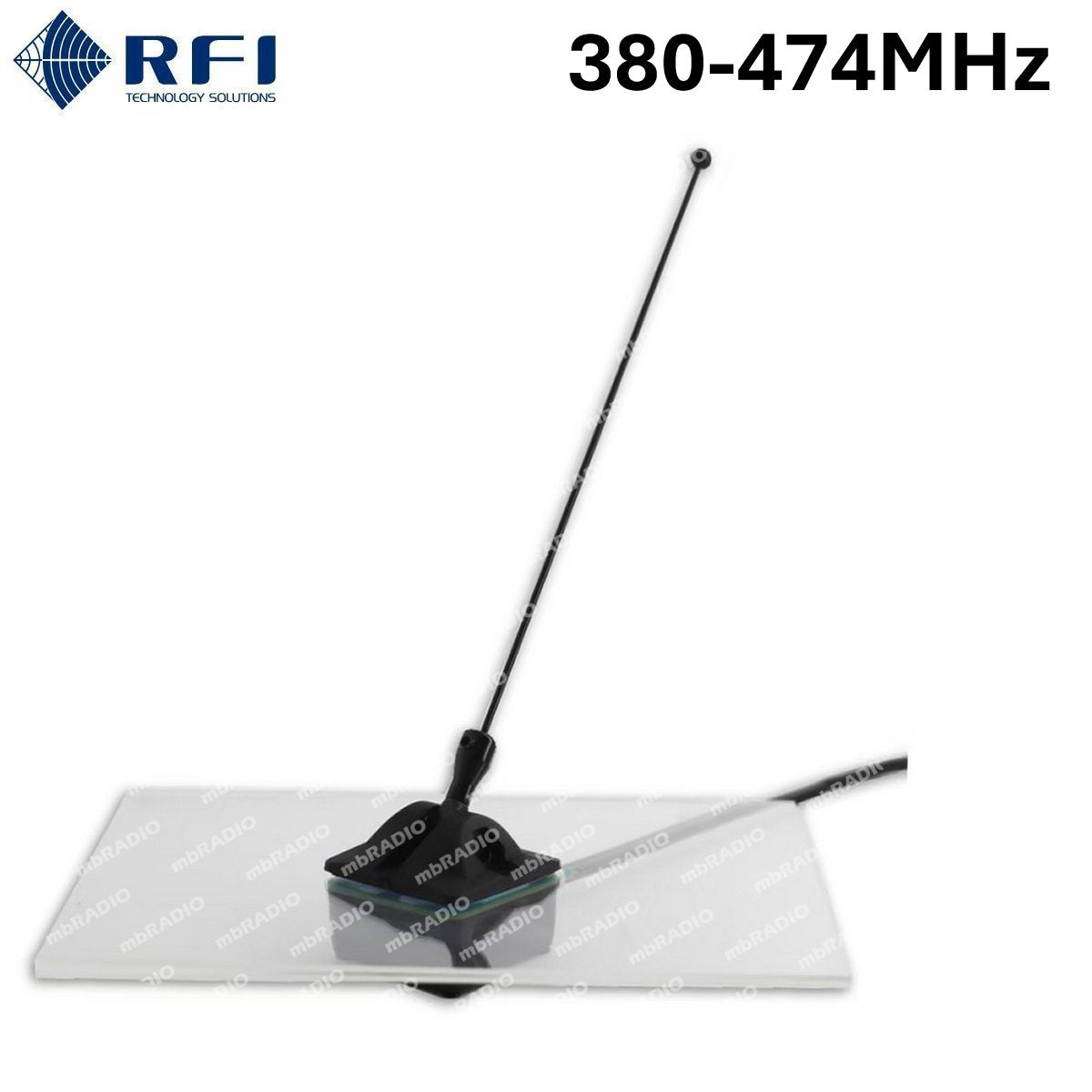

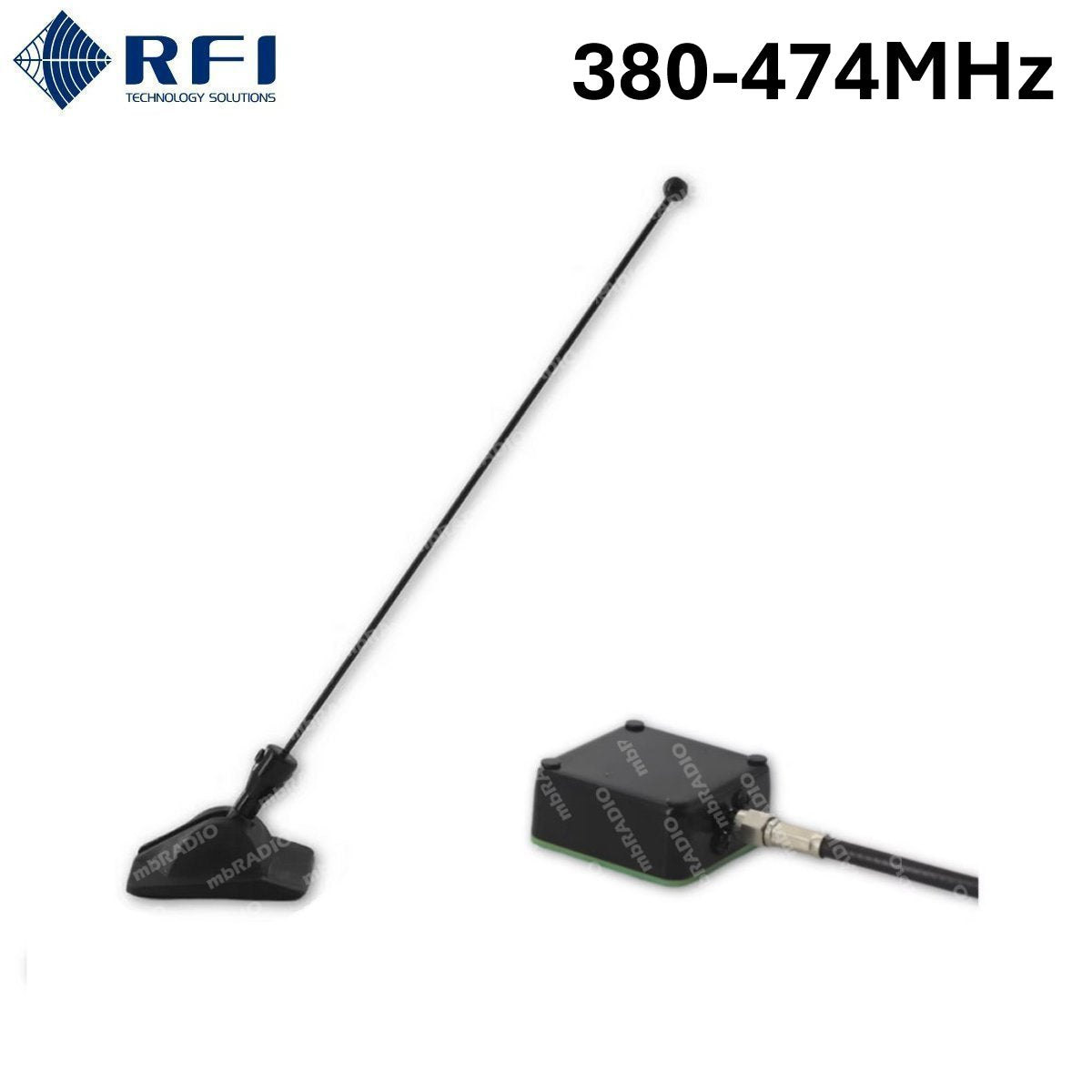

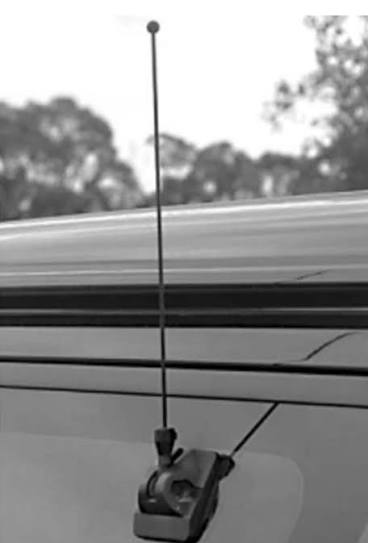

AP374The AP374 is a broadband glass mount antenna specifically designed for wideband mobile radio applications. Using On-Glass technology the AP374 transmits and receives through the glass making it ideal for fleet installations with a no-holes installation.
Key Features:
- Designed for broadband use with no additional tuning required across the whole band from 380-474MHz for a VSWR of less than 1.9:1.
- Glass mount design transmits and receives through the glass.
- Weatherproof - water cannot enter the vehicle through gasket failure or cable channels.
- Efficient - mounts high on the vehicle for maximum omnidirectional radiation pattern.
- Broadband - requires no field tuning across entire frequency range.
- Time-saving - simple mounting method allows no-hole installation in minutes
Specifications:
| Brand | RFI |
| Mounting | Threaded Stud (outside mount) |
| Frequency MHz | 380 - 474 |
| Tuned Bandwidth | Full. No tuning required |
| VSWR | <2.0:1 |
| Nominal Gain [dBi] | Unity |
| Power [W] | 50 |
| Frequency Range [MHz] | 380 - 474 |
| Band | 380 - 474MHz |
| Tuning | Supplied tuned |
| Cable And Connector | 5.0m RG58C/U, Mini UHF fitted for coupling box.UNTERMINATED AT THE RADIO END |
| Whip Length mm | 254 |
| Whip Material | Stainless steel with black high gloss finish |
| Antenna Application | Vehicle Antenna |
| Antenna Configuration | SISO |
