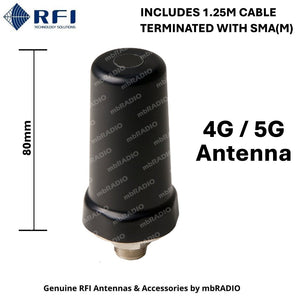

RFI CSM700 4G / 5G LTE STUD MOUNT ANTENNA (698-3800 MHz), 1.25M, SMA(M)
CSM700-1.25M-SMAThe CSM700 is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 3.8 GHz. The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. The CSM700 is fitted with a 13mm stud mount incorporating an integrated rubber O-ring seal, and is IP65 rated.
It's a compact low-profile omni-directional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 - 3800MHz. The antenna features and attractive, compact housing which can be used both indoor/outdoor applications and is IP65 rated.
Polycarbonate radome is ideal for outdoor use, attractive, low profile design for maximum overhead clearance with stud mounting offers ease of installation in the field.
Ingress protection to IP65
Ideal for applications Cel-Fi GO, automation, vending, traffic, security & much more.
Another Quality RFI Product.
Features
- Multi-band LTE coverage
- Compact low profile design
- IP65 rating
Specs
- Band: 3G / 4G / 5G LTE
- Frequency Range: 1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960
- Nominal Gain Dbi: 2 / 3.5 / 5 / 5
- Nominal impedance: 50
- Power: 10 W
- Polarisation: Vertical
- VSWR: <2.0:1
- Radome Diameter: 50mm
- Construction: UV Stable Black Polycarbonate Radome
- Tuned bandwidth: Full, no tuning required
- Cable And Connector: 1.25 Metre RG58 with SMA(M)
